BLheli suite is for BLHeliS ESC's and yours is a BLheli 32. Ihope you didn't try flashing anything with BLHELI suite. Idk what would even happen in that case or if that software will even detect the ESC's at all. Get on windows and get blheli suite 32 and try that. Is there a way to find out if i flashed them ESC`s wrong? Howtoblhelimacosx.md How to use BLHeli Suite on Mac OS X. Download & install winebottler. Save list of devices connected to computer. Ls /dev/. /tmp/usbtmp1.

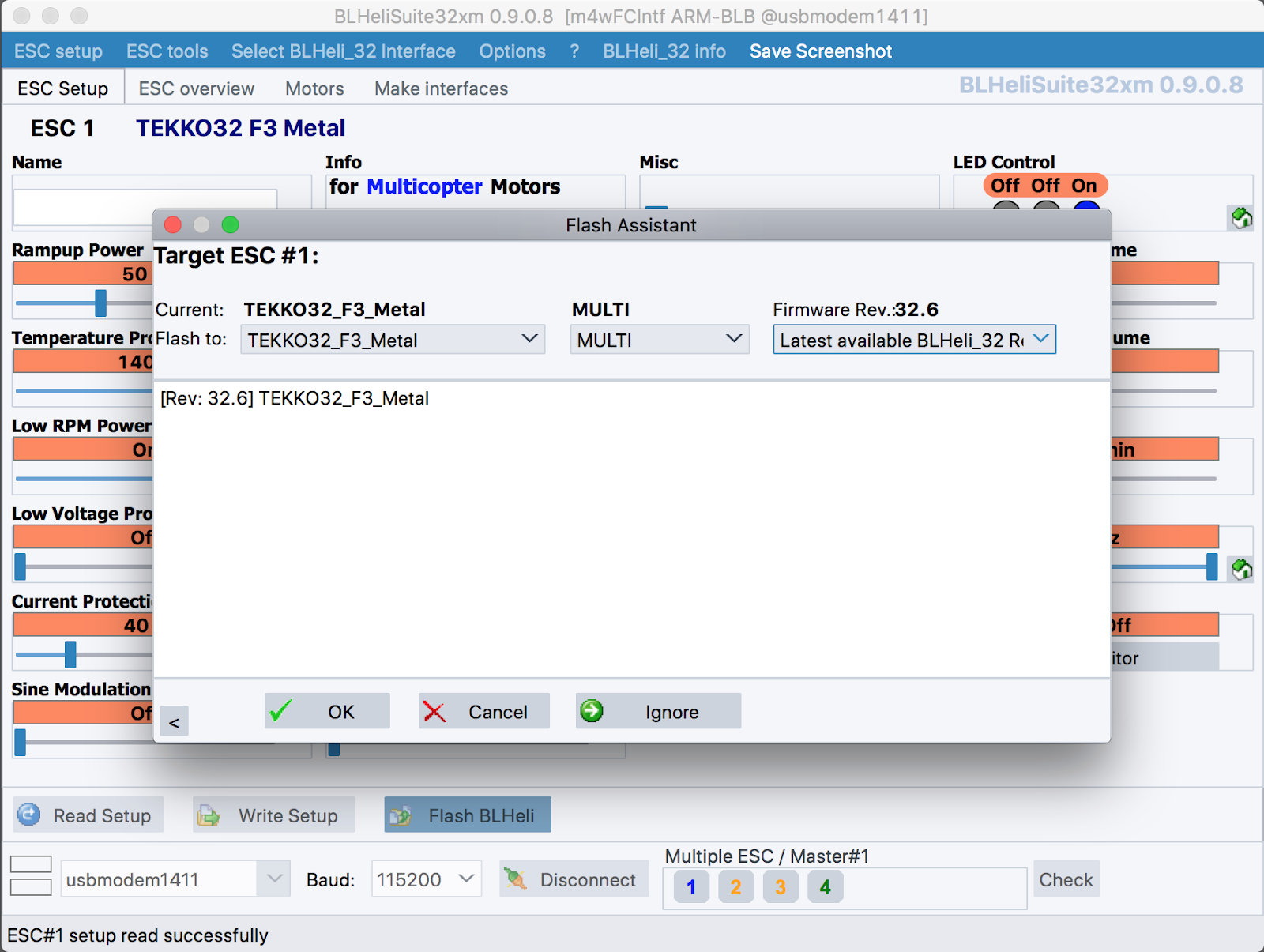

Running BLHeil32 suite on Mac Document Conventions. Where you see this means to press the enter key. Means to press the command or 'flower' key, means to press the space key; any other text inside angle brackets refers to a value captured earlier in the document; Install and Configure Wine. Im running BLHeli 32 and the configurator will recognize the quad and connect and says it read the ESC's but i get nothing on the screen. I've tried the stand alone version as well. Is there anything i can do to fix this issue. Benefits of BLHeli32 Firmware on 32-bit ESC 32bit processors run faster than 8bit, at which we can expect better performance from the new 32bit ESC’s. Faster input signals with lower latency and higher update rate would be possible, such as Dshot1200 or even faster protocols!
UPDATE – BLHeli Configurator
Recently an open source project called BLHeli Configurator was pushed to the Google App store. This is great news for Mac users! Just download the app and you are ready to configure or flash your BLHeli and BLHeli_S ESCs.
Silicon Labs Software. Download software files to support Silicon Labs wide portfolio of products. Access information on Reference Designs, 8-bit and 32-bit microcontrollers, interface, timing, sensors, wireless Proprietary, zigbee®, Thread, Bluetooth® and Wi-Fi® development. Hi all can anyone tell me if you can open blheli 32 on Os/Mac to configure. 20 mins of messing around and I have not tested for blheli suite 32.
Introduction
Most FPV pilots nowadays are running ESCs with BLHeli firmware. Whether they are Little Bees, Angry-Beast or even SN20A’s they all have one program in common, and that is BLHeliSuite. BLHeliSuite is a Windows based application that connects to your ESCs either through One Wire or now through your flight controller running Betaflight and allows you to configure important settings on the ESCs. If you are like me and run a Mac both at your workbench and in the field, you may have figured out that you are unable to run BLHeliSuite. Up until recently I have been running a Windows VM on my Mac to get BLHeliSuite working. Although this does work, I can’t really say that it is all that convenient, and it can be quite a pain to map through the USB port. This post explains my latest solution and why I prefer this method. But first…. a warning….
Warning
This is a hack! Yup, I have to be completely honest, this is not the easiest solution out there, but it works for me. What I like about this solution is that you do not need to run a Windows VM on your Mac. What I don’t like about this solution is the time it takes to map the USB port through to BLHeliSuite. If you are not comfortable using the Terminal on your Mac this is not the solution for you.
What You Will Need
- WineBottler (Download the stable version)
Instructions
Part 1 – Building the BLHeliSuite Application
You will only need to build the application one time. If you have already completed part 1 you may proceed to part 2.
- Download and install WineBottler
- Download and Extract BLHeliSuite
- Run the WineBottler App
- Go to the Advanced tab
- Under “Program to install” click the “select File…” button
- Navigate to the extracted BLHeliSuite folder and select the BLHeliSuite.exe file
- Select the radio button labeled ‘This is the actual program, copy it and all files that are in the same folder”
- Check the box labeled “Include Wine binaries, so the app can run without prior install of Wine”
- Click “Install” at the bottom of the page
- Here you will be prompted as to where to save the new application. Save the app as BLHeliSuite. For this demo I will be saving it to my desktop. (IMPORTANT: Do not save the new application in the extracted BLHeliSuite folder. This will cause an infinite loop and take up all of your hard drive space)
- Click “Save” and give it some time to complete
- Once complete you can run the application to test it out
Part 2 – Mapping the USB Device to BLHeliSuite
This will need to be performed almost every time you plug in a new USB device to configure an ESC. Sprint layout edit macros access.
- Close out of the BLHeliSuite application if it is open
- Unplug the USB Programmer or flight controller if it is plugged in
- Open Terminal
- Run the following commands in terminal
- cd /dev
- ls > /tmp/before.txt
- Plug in your USB programmer or flight controller (You may need Cleanflight Configurator open, but not connected if are using passthrough)
- Run the following commands in terminal
- ls > /tmp/after.txt
- diff /tmp/before.txt /tmp/after.txt
- The output should look something like this
- The device you want typically starts with “cu”. In my case the device is located at /dev/cu.SLAB_USBtoUART
- Link the device to your newly created instance of BLHeliSuite by running the following command
ln -s <Path to Your Device> <Path to Your BLHeliSuite App>/BLHeliSuite.app/Contents/Resources/dosdevices/com1
Here is an example command from my environment:
ln -s /dev/cu.SLAB_USBtoUART ~/Desktop/BLHeliSuite.app/Contents/Resources/dosdevices/com1
- You can now launch the BLHeliSuite application and connect as you normally would using the Com1 port
Related searches
- » adobe flash player 12 activex 12.0.0 77
- » mtpportingkit12.0.0-downloadmtp 12.0.0
- » 12 12 12
- » intel proset 12.0.0.x
- » adobe flash player 12.0.0.0
- » 英特尔proset 12.0.0.x
- » intel proset wireless wifi 12.0.0.x
- » intel r proset wireless 12.0.0.x
- » mtp porting kit 12.0.0
- » proset 12.0.0.x
Blheli Suite 32 Configurator Download
blhelisuite 12.2.0.0
Blhelisuite32 Mac
at UpdateStar- More
ASUS VIBE 2.0.12.311
An entertainment platform that serves as a value-added service for all ASUS products. With the asus@vibe platform, users can access or download a wealth of exciting and engaging digital content such as … more info.. - More
VLC media player 3.0.10
VLC Media Player Foot Pedal allows VLC Media Player to be used as transcription software for transcription of all types of media files with full foot pedal support. more info.. - More
Bonjour 3.1.0.1
Bonjour, also known as zero-configuration networking, enables automatic discovery of computers, devices, and services on IP networks. more info.. - More
CloneDVD 2 2.9.3.6
CloneDVD is a flexible and easy to use DVD movie copy software. Without special setting, CloneDVD automatically removes all protections (CSS, RC, RCE, UOPs and Sony ARccOS) on-the-fly, lets you freely copy all of your DVD movie … more info.. - More
Autodesk Advanced Material Library Image Library 2 16.11.1
- More
Windows Driver Package - AMD (amdkmpfd) System (0 19.20
- More
Far Cry 2 5
Far Cry 2, the next-generation first-person shooter from Ubisoft, will take you deep into the most beautiful but also most hostile environments in the world: Africa! more info.. - More
AusweisApp 2 1.20
Bundesamt für Sicherheit in der Informationstechnik - 14.3MB - Freeware -Mehr Sicherheit im Online-Geschäftsverkehr und bei Online-Behördengängen! Mit der Online-Ausweisfunktion des Personalausweises und des elektronischen Aufenthaltstitels können Sie sich einfach und sicher im Internet und an Bürgerterminals … more info..
blhelisuite 12.2.0.0
- More
Bonjour 3.1.0.1
Bonjour, also known as zero-configuration networking, enables automatic discovery of computers, devices, and services on IP networks. more info.. - More
Intel Matrix Storage Manager 8.9
Intel® Matrix Storage Manager provides software support for high-performance Serial ATA RAID 0 arrays, fault-tolerant Serial ATA RAID 1 arrays, high capacity and fault-tolerant Serial ATA RAID 5 arrays and high performance and … more info.. - More
Realtek High Definition Audio Driver 6.0.8924.1
REALTEK Semiconductor Corp. - 168.6MB - Freeware -Audio chipsets from Realtek are used in motherboards from many different manufacturers. If you have such a motherboard, you can use the drivers provided by Realtek. more info.. - More
VLC media player 3.0.10
VLC Media Player Foot Pedal allows VLC Media Player to be used as transcription software for transcription of all types of media files with full foot pedal support. more info.. - More
Windows Live Sync 14.0.8117.416
Windows Live Sync (formerly known as Windows Live FolderShare) is a free-to-use file synchronization application by Microsoft that is designed to allow files and folders between two or more computers be in sync with each other on Windows … more info.. - More
WinZip 24.0.14033
The world's #1 compression software is leading the way in flexible file management. Browse, open, manage and share files and folders on your PC, network or cloud services—all in WinZip 20.5. more info.. - More
Ravi Bhadaniya 23.15.2.1.910
- More
WashAndGo 25.6
The latest version of WashAndGo, the PC 'scrubbing brush' software, enables users to simply and easily clean their PC hard disk, freeing disk space and speeding access to important data. more info.. - More
Adobe Audition CC 2019.12.1.1.42
Adobe Audition CC is a powerful application for recording and mixing audio for video, podcasting, and sound effect design. Audition is also an industry-leading tool for cleaning up recordings and audio restoration. more info.. - More
Kaspersky Internet Security 20.0.14.1085
Kaspersky Internet Security Review brings you consumer ratings on Kaspersky Internet Security. Thus, here we share important facts, relevant points as well as unfiltered consumer-comments including trustworthy complaints, so that your PC … more info..
blhelisuite 12.2.0.0
- More
Autodesk Advanced Material Library Image Library 2 16.11.1
- More
Windows Driver Package - AMD (amdkmpfd) System (0 19.20
- More
AusweisApp 2 1.20
Bundesamt für Sicherheit in der Informationstechnik - 14.3MB - Freeware -Mehr Sicherheit im Online-Geschäftsverkehr und bei Online-Behördengängen! Mit der Online-Ausweisfunktion des Personalausweises und des elektronischen Aufenthaltstitels können Sie sich einfach und sicher im Internet und an Bürgerterminals … more info.. - More
CloneDVD 2 2.9.3.6
CloneDVD is a flexible and easy to use DVD movie copy software. Without special setting, CloneDVD automatically removes all protections (CSS, RC, RCE, UOPs and Sony ARccOS) on-the-fly, lets you freely copy all of your DVD movie … more info..
Most recent searches
- » samsung printer diagnostics-apk
- » descargar mostrador de fps
- » plantronics ソフトウェア インストール
- » baixar o ivms 4200 atualizado
- » marpho 2.0.1.34 drivers
- » um one ドライバーインストール
- » crystaldiskinfo 8.5.2
- » facebook icloud.com
- » baixar jogos para nokia lumia gratuito
- » hp webcam软件安装包
- » 3d life download
- » widcomm bluetooth software12.0.0.9350
- » download hptouchpointanalyticsclient
- » etiquette multi usage programme
- » bome's midi translator classic下載
- » cad 2012 繁體 下載
- » deutschlands kartenspiele de luxe für pc
- » dt builder ver 5
- » windows realtek ati hdmi audio
- » sdrt.msi ダウンロード
What is BLHeli Suite?
BLHeli Suite is powerful program for flashing, setting up and configuring your BLHeli or BLHeli_S ESCs.
Why do you need BLHeli Suite ?
There a several reasons you may need to use the BLHeli Suite (or BLHeli Configurator). This is list of some:
- Reverse the rotation of the motors (Props In or Props Out);
- Upgrade the BLHeli firmware on your ESC
- Change the BLHeli ESC parameters
BLHeli Suite or BLHeli Configurator?
BLHeli Suite is the most feature rich application for setting up the BLHeli and BLHeli_S ESCs. It is still maintained and time to time is updated. BLHeli Suite runs only on Windows platform. (BLHeli_32 Suite however is available on Win, Linux and MacOS platforms)
BLHeli Configurator is simpler, but user friendlier than BLHeli Suite.
BLHeli Configurator Chrome App is the same BLHeli Configurator, just it was originally distributed only as Chrome App. BLHeli Configurator Chrome App was last updated in the 2017. So this Chrome app is probably is abandoned. But it works and might be sufficient for you.
I would recommend the BLHeli Configurator for beginners and BLHeli Suite for advanced users.
How to download the BLHeli Suite and BLHeli Configurator?
Blheli Suite 32 Machine
You can download the BLHeli Suite (also the BLHeli_32 Suite) from here: https://www.mediafire.com/folder/dx6kfaasyo24l/BLHeliSuite
You can download the BLHeli Configurator Cross-platform application from here: https://github.com/blheli-configurator/blheli-configurator/releases
How to install the BLHeli Suite and BLHeli Configurator?
No special installation is required. You just need to unzip the contents of the BLHeliSuitexxxx.zip to any folder you want.
How to connect the BLHeli Suite to ESC ?
Start BLHeli Suite. Select the interface “SILABS BLHeli Bootloader (Cleanflight)” if you are connecting to the ESC via the flight controller (ESC is connected to the FC). Then select the port number that the flight controller is connected to and hit Connect button.
If you have sucessfuly connceted to the ESC, then the next step is reading the settings of the ESC or ESC’s. Hit the Read Setup or
The result will be shown in the dialog box.
How to reverse the rotation of the Motor?
In BLHeli Suite you need to connect to the ESC, then Read Setup and change the Motor Direction by moving the slider to the position 2 (Reversed).
Don’t forget to hit the Write Setup after you’ve made the changes. Have in mind that BLHeli Suite writes the changes for the selected ESC, so you need to select or unselect the ESC below.
Otherwise BLHeli Suite will write only to the first (master) ESC.
In BLHeli Configurator you can also change the Motor Direction by selecting Normal or Reversed (Bidirectional and BidirecitionalReveresed is used for 3D setups).
